IEMCA Feeding Collets & Revolving Tips

Compatible feeding collets and revolving tips for IEMCA bar feeder systems. Browse available models, dimensional specifications, bore ranges and thread or pin connections below.

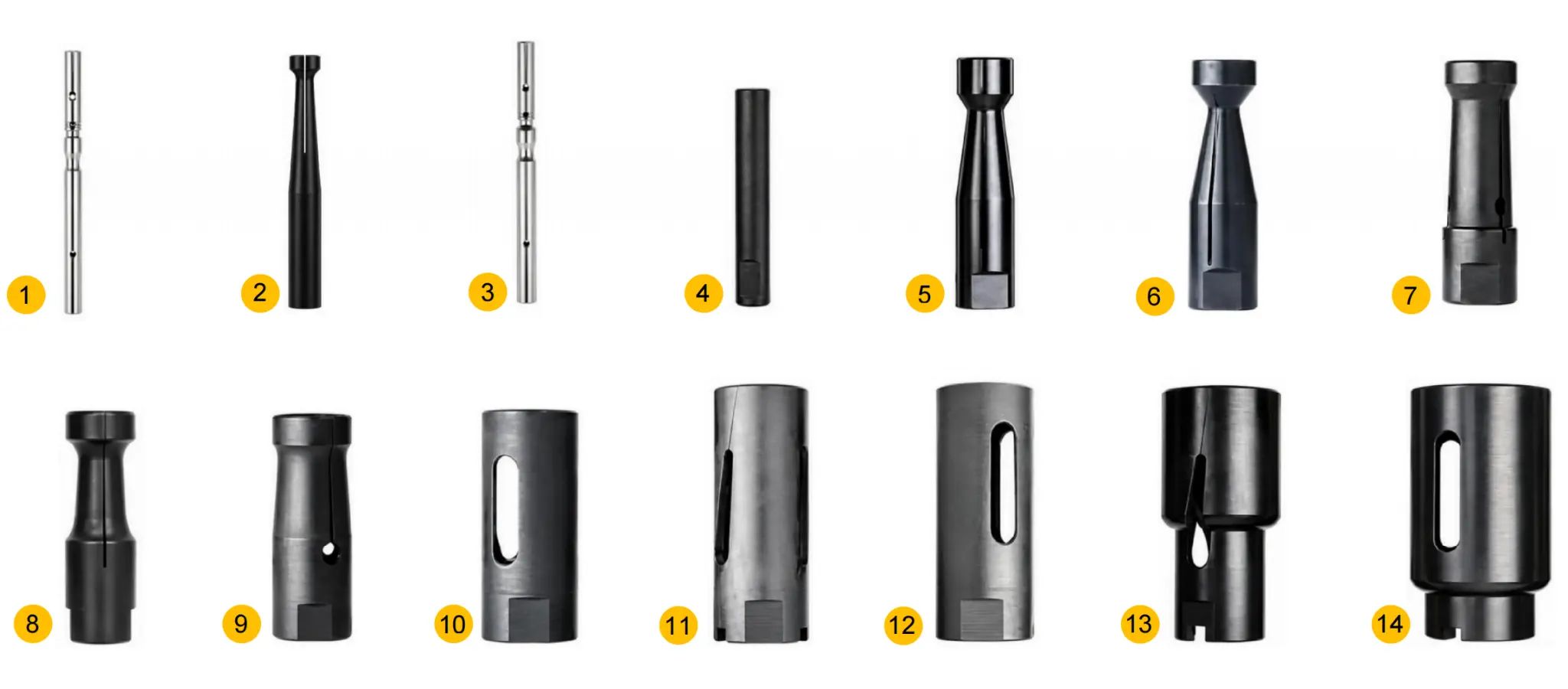

IEMCA Feeding Collets

Unit: mm

Order No.	Model	OD	L	TH	I.D. Range	Type
IEM-R01	4#	5	98	M4×P0.7	0.8–4.0	1
IEM-R02	5#	5	37	M4×P0.5	2.0–4.0	2
IEM-R03	4–7#	7	98	M4×P0.7	0.8–4.0	3
IEM-R04	4–7#	7	98	M4×P0.7	4.1–6.0	3
IEM-R05	4–7#	7	98	M4×P0.7	2.0–5.5	3
IEM-R06	7.5#	7.5	40	M5×P0.8	2.0–6.0	4
IEM-R07	10#	10	42	M6×P0.75	1.5–8.5	5
IEM-R08	12#	12	42	M7×P0.75	1.5–10.5	6
IEM-R09	12#	13	42	M7×P0.75	11	6
IEM-R10	15#	15	42	M8×P1.0	2.0–13.0	7
IEM-R11	16#	16	42	M8×P1.0	12.0–14.0	7
IEM-R12	20#	20	60	M10×P1.0	2.0–18.5	8
IEM-R13	23#	23	60	M10×P1.0	14.0–21.5	9
IEM-R14	25#	25	60	M10×P1.0	16.5–23.5	10
IEM-R15	27#	27	60	M10×P1.0	16.5–25.5	9
IEM-R16	32#	32	80	M25×P1.5	4.0–30.5	11
IEM-R17	35#	35	80	M25×P1.5	28.5–33.0	12
IEM-R18	37#	37	80	M25×P1.5	30.0–35.0	13
IEM-R19	38#	38	80	M25×P1.5	30.0–36.0	13
IEM-R20	40#	40	80	M25×P1.5	20.0–37.0	13
IEM-R21	42#	42	80	M25×P1.5	31.5–40.0	13
IEM-R22	45#	45	80	M25×P1.5	38.5–42.2	13
IEM-R23	51#	51	80	M25×P1.5	42.5–48.0	14

Bore selection: Standard feeding collets use a round bore. Please provide the bar shape and nominal size; the final bore is determined according to the supplied bar data and required spring grip.

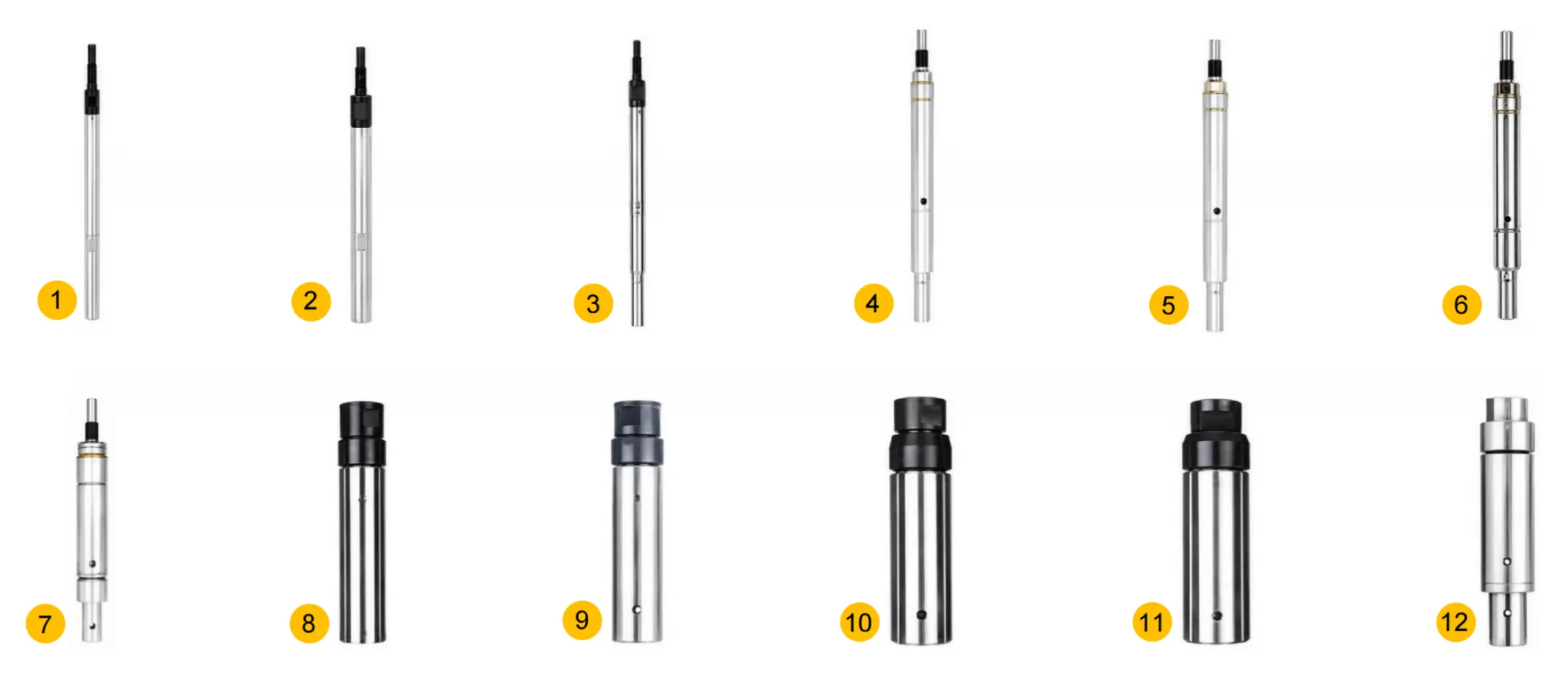

IEMCA Revolving Tips

Unit: mm

Order No.	Model	OD	L	TH	PIN / TH	Type
IEM-T01	7.5#	7.5	151	M5×P0.5	M6×P0.75	1
IEM-T02	10#	10.5	137.5	M6×P0.75	M8×P1.0	2
IEM-T03	10#	10.5	167	M6×P0.75	PIN: 3.0	3
IEM-T04	12#	12.5	173	M7×P0.75	PIN: 3.0	4
IEM-T05	15#	15.5	195	M8×P1.0	PIN: 4.0	5
IEM-T06	16#	16.5	195	M8×P1.0	PIN: 4.0	5
IEM-T07	18#	18.5	195	M8×P1.0	PIN: 4.0	5
IEM-T08	19#	19.5	195	M8×P1.0	PIN: 4.0	5
IEM-T09	20#	20.5	207.5	M10×P1.0	PIN: 4.0	6
IEM-T10	22#	22.5	207.5	M10×P1.0	PIN: 4.0	6
IEM-T11	23#	23.5	207.5	M10×P1.0	PIN: 4.0	6
IEM-T12	25#	25.5	207.5	M10×P1.0	PIN: 5.0	7
IEM-T13	27#	27.5	207.5	M10×P1.0	PIN: 5.0	7
IEM-T14	30#	30.5	165	M25×P1.5	PIN: 5.0	8
IEM-T15	32#	32.5	165	M25×P1.5	PIN: 5.0	8
IEM-T16	35#	35.5	165	M25×P1.5	PIN: 5.0	9
IEM-T17	37#	37.5	165	M25×P1.5	PIN: 5.0	9
IEM-T18	38#	38.5	165	M25×P1.5	PIN: 5.0	9
IEM-T19	40#	40.5	165	M25×P1.5	PIN: 6.0	10
IEM-T20	42#	42.5	165	M25×P1.5	PIN: 6.0	10
IEM-T21	45#	45.5	165	M25×P1.5	PIN: 6.0	10
IEM-T22	51#	51.5	165	M25×P1.5	PIN: 6.0	11
IEM-T23	51#	51.5	221	M25×P1.5	PIN: 6.0	12

Selection note: Similar model numbers may use different overall lengths, threads or pin specifications. Please confirm the existing component dimensions before ordering.

Available Configurations

Final dimensions are confirmed according to the IEMCA bar feeder model, the existing component and the bar stock used in production.

Product Types

Feeding Collet Revolving Tip

Feeding Collet Stock Information

Round Bar — Nominal Diameter Square Bar — Across Flats × 1.35 Hex Bar — Across Flats × 1.155 Final Bore Made to Supplied Bar Data

Revolving Tip Connections

Threaded Connection Pin Type Made to Drawing or Sample

Information Required for Confirmation

IEMCA Bar Feeder Model Existing Part Photo or Drawing OD & Overall Length Thread or Pin Size Bar Shape & Nominal Size Required Quantity
