IKURA Feeding Collets & Revolving Tips

Compatible feeding collets and revolving tips for IKURA bar feeder systems. Browse available models, dimensional specifications, bore ranges and thread or pin connections below.

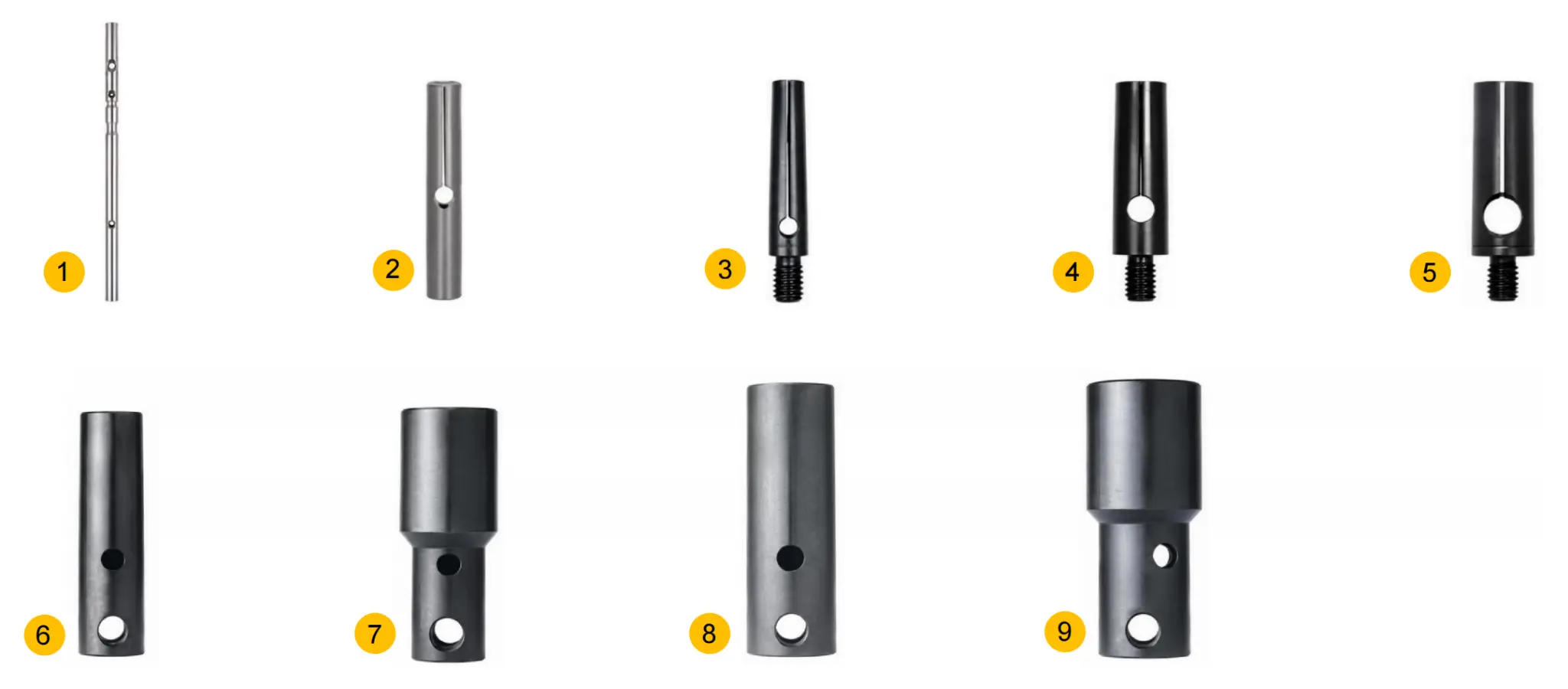

IKURA Feeding Collets

Unit: mm

Order No.	Model	OD	L	TH	I.D. Range	Type
IKU-L01	4#	5	98	M4×P0.7	0.8–4.0	1
IKU-L02	4#	5	28	M4×P0.7	0.8–4.0	2
IKU-L03	7#	7	40	M6×P1.0	1.5–6.0	3
IKU-L04	8#	8	40	M6×P1.0	1.5–6.5	3
IKU-L05	10#	10	40	M6×P1.0	1.5–8.5	4
IKU-L06	12#	12	40	M6×P1.0	3.0–10.5	5
IKU-L07	15#	15	55	—	3.0–13.0	6
IKU-L08	20#	20	55	—	3.0–18.0	7
IKU-L09	25#	25	76	—	5.0–23.0	8
IKU-L10	32#	32	76	—	5.0–28.0	9

Bore selection: Standard feeding collets use a round bore. Please provide the bar shape and nominal size; the final bore is determined according to the supplied bar data and required spring grip.

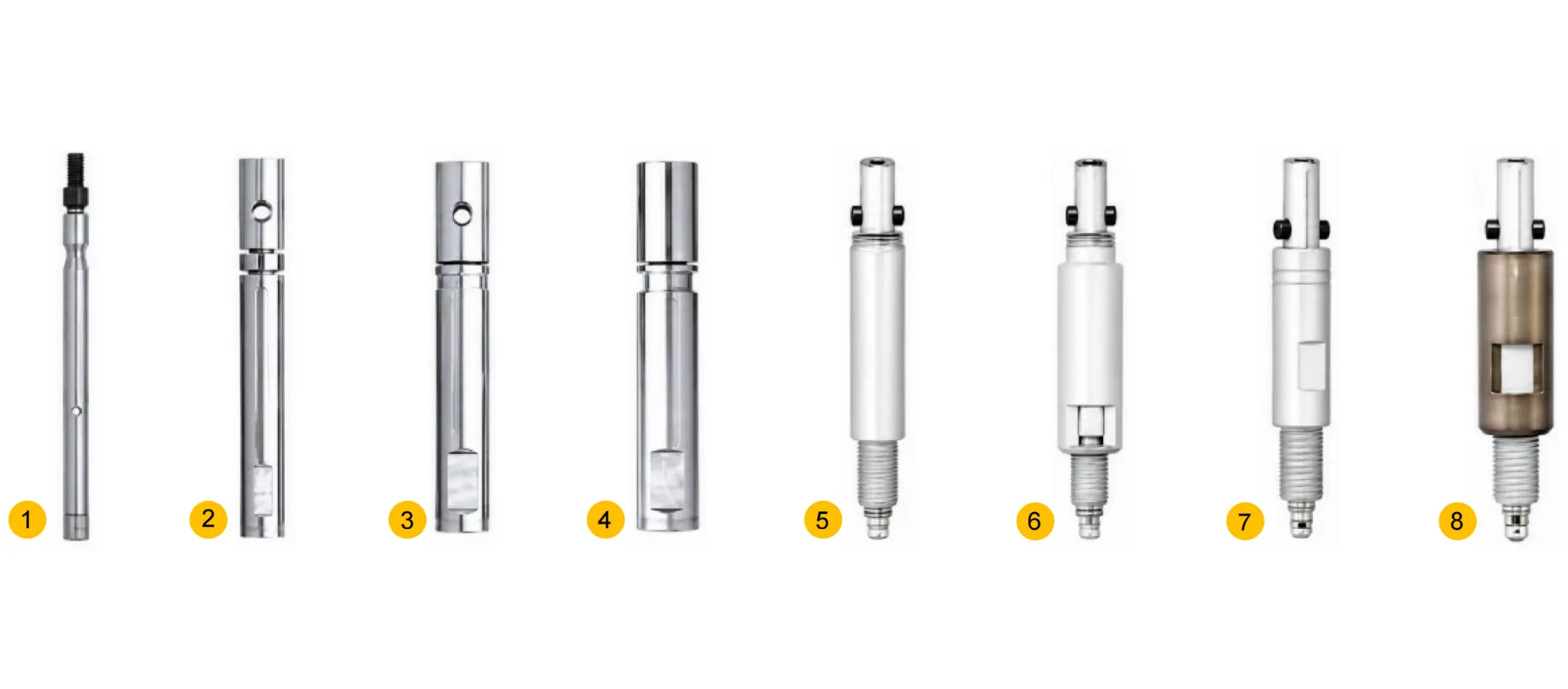

IKURA Revolving Tips

Unit: mm

Order No.	Model	OD	L	TH	PIN / TH	Type
IKU-T01	4#	5	77.1	M4×P0.7	M4×P0.7	1
IKU-T02	7#	7	67.5	M6×P1.0	M6×P1.0	2
IKU-T03	8#	8	67.5	M6×P1.0	M6×P1.0	2
IKU-T04	10#	10	67.5	M6×P1.0	M6×P1.0	3
IKU-T05	12#	12	67.5	M6×P1.0	M6×P1.0	4
IKU-T06	15#	15	119.5	PIN: 6.0	M12×P1.25	5
IKU-T07	16#	16.3	119.5	PIN: 6.0	M12×P1.25	6
IKU-T08	17#	17	119.5	PIN: 6.0	M12×P1.25	6
IKU-T09	19#	19	119.5	PIN: 6.0	M12×P1.25	6
IKU-T10	20#	20	119.5	PIN: 6.0	M12×P1.25	6
IKU-T11	21#	20.5	119.5	PIN: 6.0	M12×P1.25	6
IKU-T12	22#	21	119.5	PIN: 6.0	M12×P1.25	6
IKU-T13	25#	25	160.3	PIN: 8.0	M20×P1.5	7
IKU-T14	32#	32	160.3	PIN: 8.0	M20×P1.5	8

Selection note: Similar model numbers may use different overall lengths, threads or pin specifications. Please confirm the existing component dimensions before ordering.

Available Configurations

Final dimensions are confirmed according to the IKURA bar feeder model, the existing component and the bar stock used in production.

Product Types

Feeding Collet Revolving Tip

Feeding Collet Stock Information

Round Bar — Nominal Diameter Square Bar — Across Flats × 1.35 Hex Bar — Across Flats × 1.155 Final Bore Made to Supplied Bar Data

Revolving Tip Connections

Threaded Connection Pin Type Made to Drawing or Sample

Information Required for Confirmation

IKURA Bar Feeder Model Existing Part Photo or Drawing OD & Overall Length Thread or Pin Size Bar Shape & Nominal Size Required Quantity

Need IKURA Feeding Collets or Revolving Tips?

Send us your IKURA bar feeder model, existing component dimensions, stock size and required quantity for technical confirmation and quotation.

Request a Quote →
