LNS Feeding Collets & Revolving Tips
Compatible feeding collets and revolving tips for LNS bar feeder systems. Browse available models, dimensional specifications, bore ranges and thread or pin connections below.

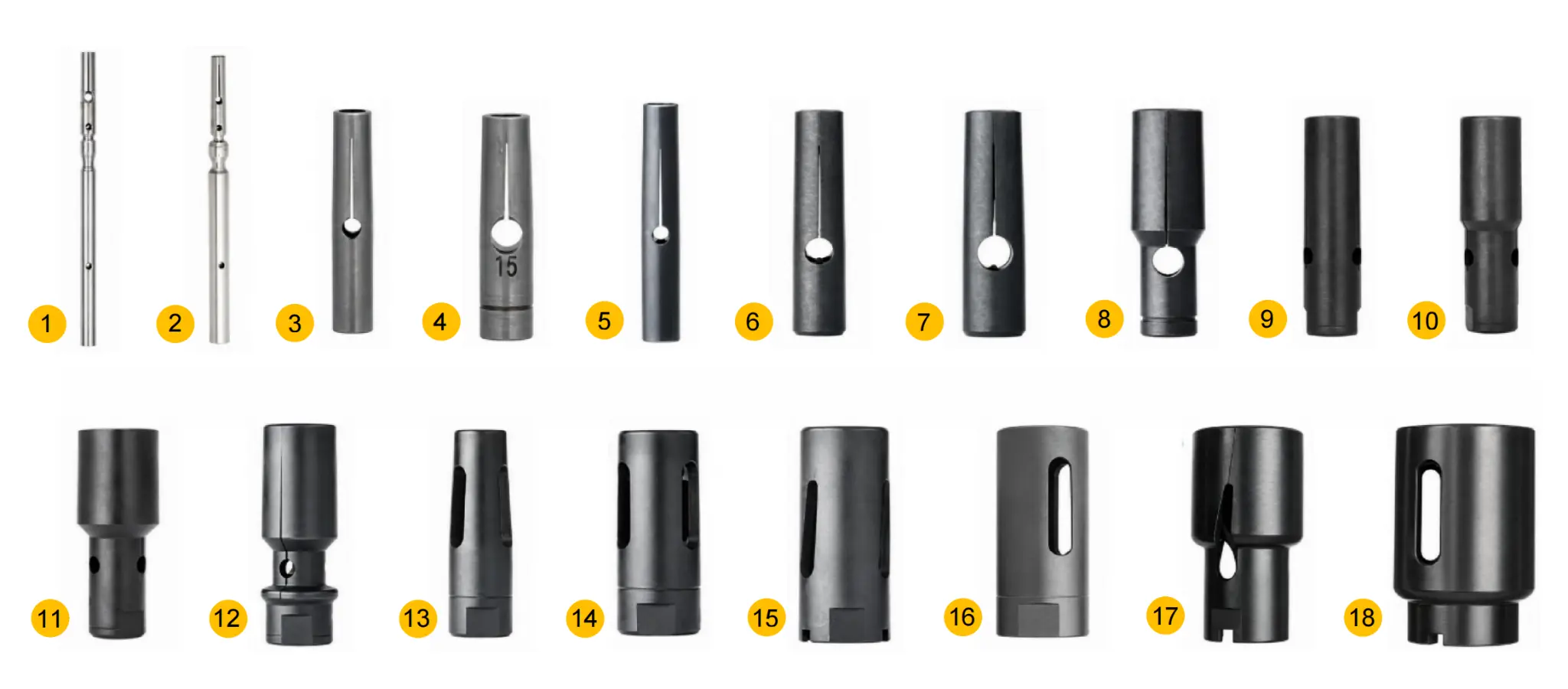

LNS Feeding Collets
Unit: mm
| Order No. | Model | OD | L | TH | I.D. Range | Type |
|---|---|---|---|---|---|---|
| LN-L01 | 4# | 5 | 98 | M4×P0.7 | 0.8–4.0 | 1 |
| LN-L02 | 4–7# | 7 | 98 | M4×P0.7 | 0.8–4.0 | 2 |
| LN-L03 | 4–7# | 7 | 98 | M4×P0.7 | 4.1–6.0 | 2 |
| LN-L04 | 4–7# | 7 | 98 | M4×P0.7 | 2.0–5.5 | 2 |
| LN-L05 | 4# | 5 | 28 | M4×P0.7 | 0.8–4.0 | 3 |
| LN-L06 | 4–7# | 7 | 28 | M4×P0.7 | 1.5–6.0 | 4 |
| LN-L07 | 7# | 7 | 50 | M4×P0.7 | 1.3–6.0 | 5 |
| LN-L08 | 7# | 8 | 50 | M4×P0.7 | 1.3–6.5 | 5 |
| LN-L09 | 7# | 9 | 50 | M4×P0.7 | 6.6–7.0 | 5 |
| LN-L10 | 8.5# | 9.5 | 45 | M5×P0.8 | 1.5–7.8 | 6 |
| LN-L11 | 8.5# | 10 | 45 | M5×P0.8 | 7.9–8.5 | 6 |
| LN-L12 | 8.5# | 12 | 45 | M5×P0.8 | 3.0–10.5 | 7 |
| LN-L13 | 8.5# | 13 | 45 | M5×P0.8 | 10.8–11.0 | 8 |
| LN-L14 | 8.5# | 14 | 45 | M5×P0.8 | 11.5–12.0 | 8 |
| LN-L15 | 8.5# | 15 | 45 | M5×P0.8 | 12.5–13.0 | 8 |
| LN-L16 | 8.5# | 15.5 | 45 | M5×P0.8 | 13.5 | 8 |
| LN-L17 | 20# | 15 | 60 | M9×P1.0 | 2.0–13.0 | 9 |
| LN-L18 | 20# | 18 | 60 | M9×P1.0 | 11.5–15.1 | 10 |
| LN-L19 | 20# | 19 | 60 | M9×P1.0 | 15.2–16.0 | 10 |
| LN-L20 | 20# | 20 | 60 | M9×P1.0 | 16.5–18.0 | 10 |
| LN-L21 | 20# | 22 | 60 | M9×P1.0 | 18.5–19.0 | 11 |
| LN-L22 | 20# | 24 | 60 | M9×P1.0 | 19.5–21.0 | 11 |
| LN-L23 | 20# | 25 | 60 | M9×P1.0 | 21.5–22.0 | 11 |
| LN-L24 | XT326 | 22 | 60 | M9×P1.0 | 18.0–19.5 | 12 |
| LN-L25 | XT326 | 23 | 60 | M9×P1.0 | 20.0–21.0 | 12 |
| LN-L26 | XT326 | 26 | 60 | M9×P1.0 | 21.5–23.0 | 12 |
| LN-L27 | XT326 | 28 | 60 | M9×P1.0 | 24.0–26.0 | 12 |
| LN-L28 | XT326 | 30 | 60 | M9×P1.0 | 26.5–28.0 | 12 |
| LN-L29 | XT326 | 32 | 60 | M9×P1.0 | 28.5–29.5 | 12 |
| LN-L30 | SN20# | 20 | 60 | M10×P1.0 | 2.0–18.5 | 13 |
| LN-L31 | SN23# | 23 | 60 | M10×P1.0 | 16.0–21.0 | 14 |
| LN-L32 | SN25# | 25 | 60 | M10×P1.0 | 16.0–23.5 | 14 |
| LN-L33 | SN27# | 27 | 60 | M10×P1.0 | 16.5–25.0 | 14 |
| LN-L34 | SN32# | 32 | 70 | M17×P1.0 | 23.5–28.0 | 15 |
| LN-L35 | SN35# | 35 | 80 | M25×P1.5 | 28.5–33.0 | 16 |
| LN-L36 | SN37# | 37 | 80 | M25×P1.5 | 31.0–35.0 | 17 |
| LN-L37 | SN38# | 38 | 80 | M25×P1.5 | 30.0–36.0 | 17 |
| LN-L38 | SN42# | 42 | 80 | M25×P1.5 | 31.5–40.0 | 17 |
| LN-L39 | SN45# | 45 | 80 | M25×P1.5 | 38.5–42.5 | 17 |
| LN-L40 | SN51# | 51 | 80 | M25×P1.5 | 41.0–48.0 | 18 |
| LN-L41 | 32# | 32 | 80 | M25×P1.5 | 4.0–30.5 | 15 |
| LN-L42 | 40# | 40 | 80 | M25×P1.5 | 20.0–36.5 | 17 |
Bore selection: Standard feeding collets use a round bore.
Please provide the bar shape and nominal size; the final bore is determined
according to the supplied bar data and required spring grip.

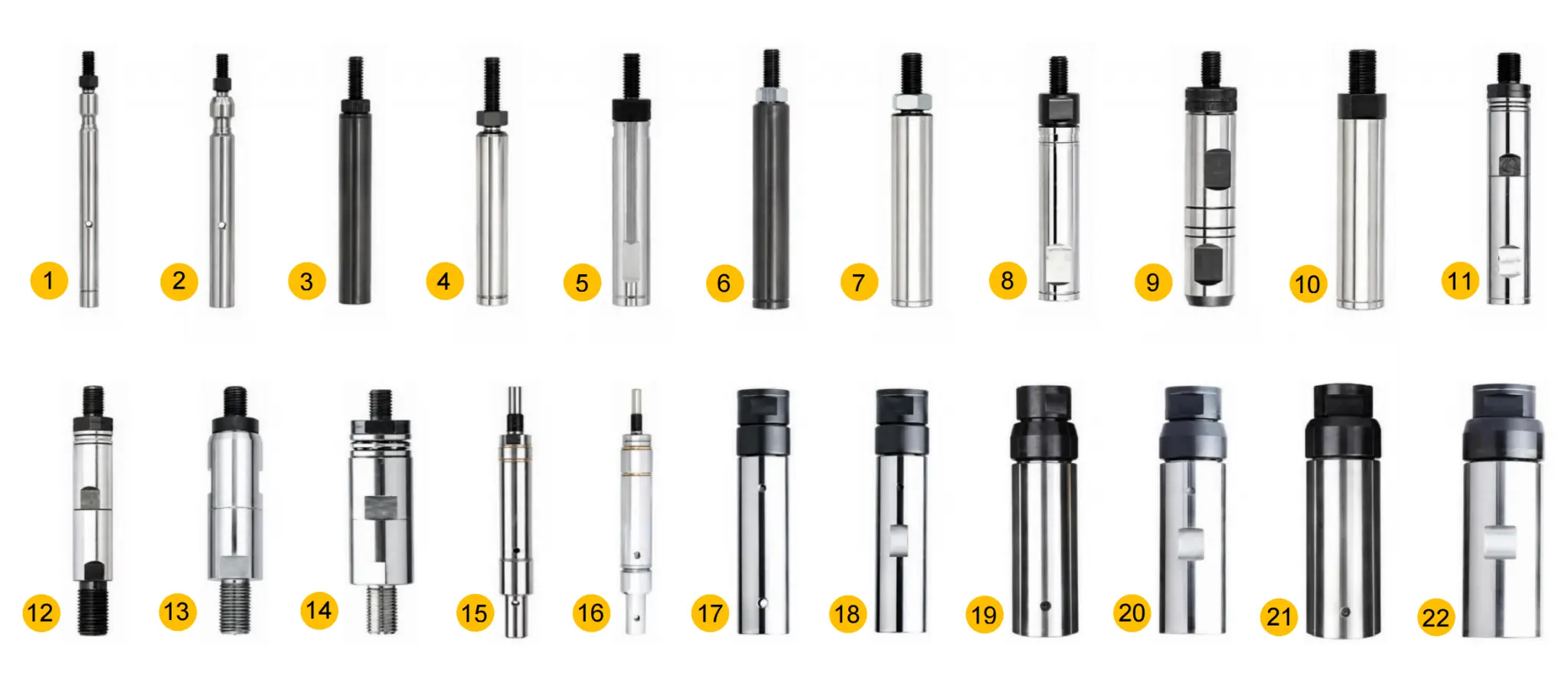

LNS Revolving Tips
Unit: mm
| Order No. | Model | OD | L | TH | PIN / TH | Type |
|---|---|---|---|---|---|---|
| LN-T01 | 4# | 5 | 77.1 | M4×P0.7 | M4×P0.7 | 1 |
| LN-T02 | 4–7# | 7 | 77.2 | M4×P0.7 | M4×P0.7 | 2 |
| LN-T03 | 7# | 7 | 65.3 | M4×P0.7 | M6×P0.75 | 3 |
| LN-T04 | 7# | 7 | 65.3 | M4×P0.7 | M6×P1.0 | 3 |
| LN-T05 | 7# | 8 | 65.3 | M4×P0.7 | M6×P0.75 | 3 |
| LN-T06 | 7# | 8 | 65.3 | M4×P0.7 | M6×P1.0 | 3 |
| LN-T07 | 7# | 8 | 61.5 | M4×P0.7 | M6×P0.75 | 4 |
| LN-T08 | 7# | 7 | 57.5 | M4×P0.7 | M6×P0.75 | 5 |
| LN-T09 | 7.5# | 7.5 | 57.5 | M4×P0.7 | M6×P1.0 | 5 |
| LN-T10 | 7# | 8 | 57.5 | M4×P0.7 | M6×P0.75 | 5 |
| LN-T11 | 8.5# | 9.5 | 63.5 | M5×P0.8 | M7×P0.75 | 6 |
| LN-T12 | 8.5# | 9.5 | 66.3 | M5×P0.8 | M7×P0.75 | 6 |
| LN-T13 | 8.5# | 10 | 59.5 | M5×P0.8 | M7×P0.75 | 7 |
| LN-T14 | 8.5# | 10 | 61.1 | M5×P0.8 | M7×P0.75 | 7 |
| LN-T15 | 8.5# | 9 | 64.5 | M5×P0.8 | M7×P0.75 | 8 |
| LN-T16 | 8.5# | 10 | 64.5 | M5×P0.8 | M7×P0.75 | 8 |
| LN-T17 | 12# | 12 | 64.5 | M5×P0.8 | M7×P0.75 | 9 |
| LN-T18 | 12# | 12 | 64.5 | M5×P0.8 | M8×P1.0 | 9 |
| LN-T19 | 20# | 15 | 92.2 | M9×P1.0 | M12×P1.0 | 10 |
| LN-T20 | 20# | 15 | 92.2 | M9×P1.0 | M12×P1.0 | 11 |
| LN-T21 | 20# | 15 | 92.2 | M9×P1.0 | M12×P1.25 | 12 |
| LN-T22 | 20# | 20 | 92.2 | M9×P1.0 | M12×P1.25 | 13 |
| LN-T23 | 25# | 25 | 92.2 | M9×P1.0 | M12×P1.25 | 14 |
| LN-T24 | 20# | 20.5 | 207.5 | M10×P1.0 | PIN: 4.0 | 15 |
| LN-T25 | 20# | 20.5 | 193.5 | M10×P1.0 | M12×P1.25 | — |
| LN-T26 | 22# | 22.5 | 207.5 | M10×P1.0 | PIN: 4.0 | 15 |
| LN-T27 | 23# | 22.5 | 207.5 | M10×P1.0 | PIN: 4.0 | 15 |
| LN-T28 | 23# | 22.5 | 193.5 | M10×P1.0 | M12×P1.25 | — |
| LN-T29 | 25# | 25.5 | 207.5 | M10×P1.0 | PIN: 5.0 | 16 |
| LN-T30 | 25# | 25.5 | 193.5 | M10×P1.0 | M16×P1.5 | — |
| LN-T31 | 27# | 27.5 | 207.5 | M10×P1.0 | PIN: 5.0 | 16 |
| LN-T32 | 27# | 27.5 | 193.5 | M10×P1.0 | M16×P1.5 | — |
| LN-T33 | 32# | 32.5 | 165 | M25×P1.5 | PIN: 5.0 | 17 |
| LN-T34 | 32# | 32.5 | 165 | M25×P1.5 | M27 | 18 |
| LN-T35 | 35# | 35.5 | 165 | M25×P1.5 | PIN: 6.0 | 17 |
| LN-T36 | 35# | 35.5 | 165 | M25×P1.5 | M29 | 18 |
| LN-T37 | 37# | 37.5 | 165 | M25×P1.5 | PIN: 6.0 | 17 |
| LN-T38 | 37# | 37.5 | 165 | M25×P1.5 | M29 | 18 |
| LN-T39 | 38# | 38.5 | 165 | M25×P1.5 | PIN: 6.0 | 17 |
| LN-T40 | 38# | 38.5 | 165 | M25×P1.5 | M29 | 18 |
| LN-T41 | 42# | 41.5 | 165 | M25×P1.5 | PIN: 6.0 | 19 |
| LN-T42 | 42# | 41.5 | 165 | M25×P1.5 | M34 | 20 |
| LN-T43 | 45# | 45.5 | 165 | M25×P1.5 | PIN: 6.0 | 19 |
| LN-T44 | 45# | 45.5 | 165 | M25×P1.5 | M38 | 20 |
| LN-T45 | 51# | 51.5 | 165 | M25×P1.5 | PIN: 6.0 | 21 |
| LN-T46 | 51# | 51.5 | 165 | M25×P1.5 | M42 | 22 |
Selection note: Similar model numbers may use different
overall lengths, threads or pin specifications. Please confirm the existing
component dimensions before ordering.
Need LNS Feeding Collets or Revolving Tips?
Send us your LNS bar feeder model, existing component dimensions, stock size and required quantity for technical confirmation and quotation.
