More Machine Models – Collets & Guide Bushes

Additional collets, guide bushes and pull-type collets for Swiss-type CNC lathes and other compatible machine models. Review dimensional specifications, maximum bore capacities and general reference numbers below.

Reinforced Carbide-Lined Guide Bushing

Unit: mm

Reinforced guide bushing with a carbide-lined bore for improved wear resistance, stable bar support and precision Swiss-type lathe machining.

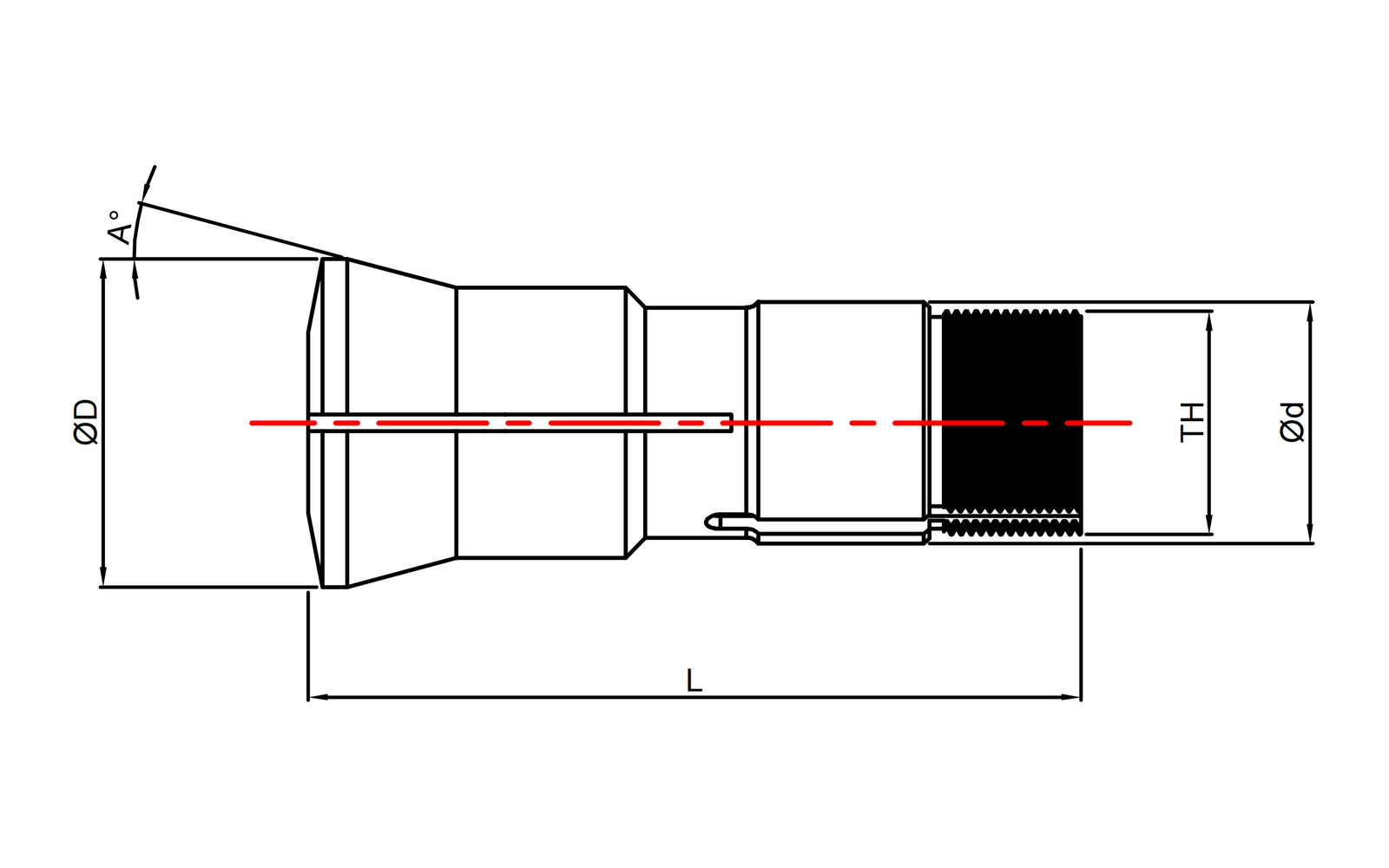

Reinforced carbide-lined guide bushing dimensional drawing

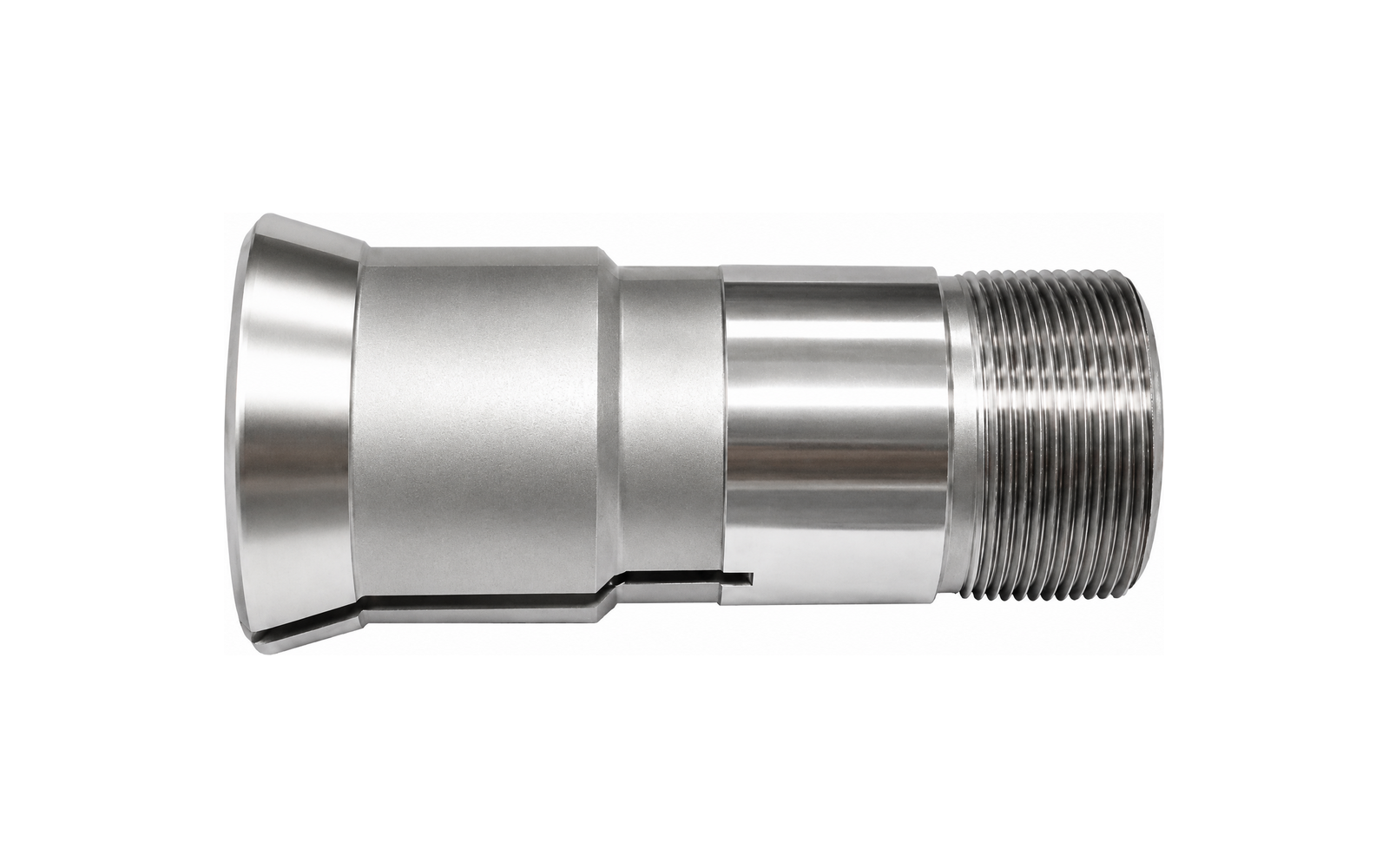

Reinforced carbide-lined guide bushing for Swiss-type CNC lathes
MAX bore capacity: Round Hexagon Square

R-220290T

GUIDE BUSH
Order No.ØdØDLTHA° MAX ●MAX ⬢MAX ■General No.
R-220290T 22.0 29.0 68.0 M22*P1.0 16° 16 13 11 TD20R / T22-68-M22.1 / F391

More Models – Collets

Unit: mm

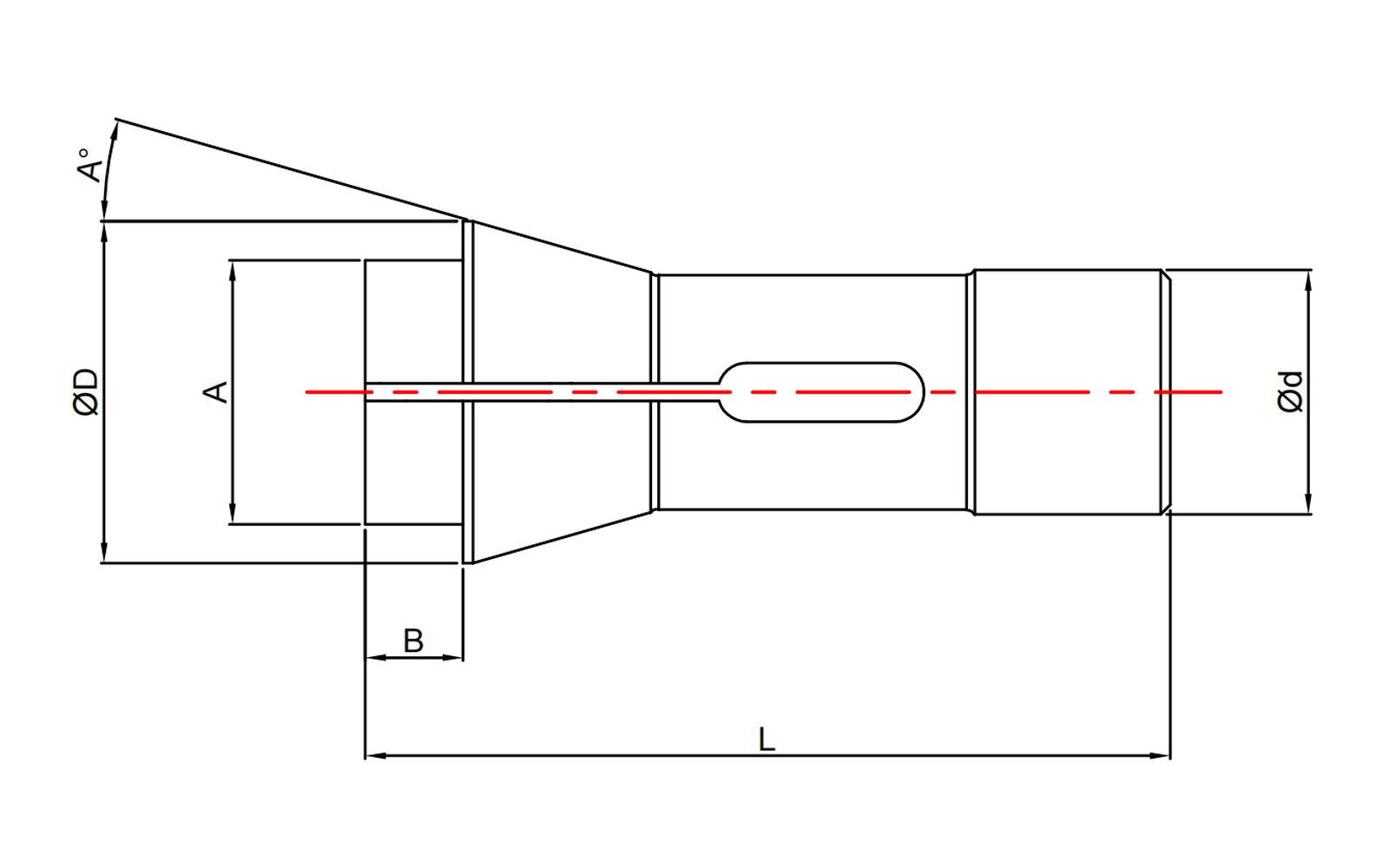

Collet dimensional reference drawing for additional Swiss-type lathe models

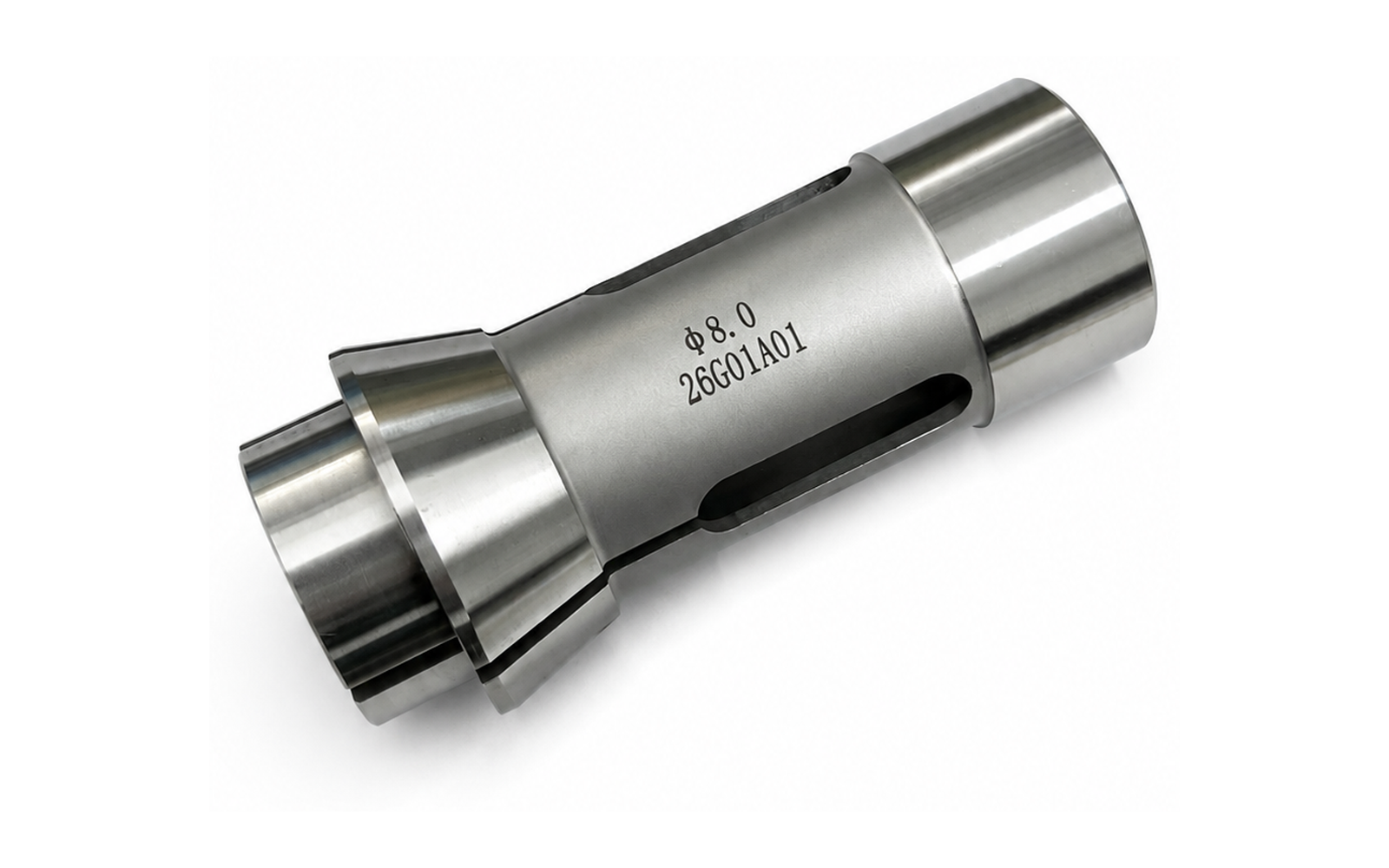

Collet for additional Swiss-type CNC lathe models
MAX bore capacity: Round Hexagon Square

Additional Swiss-Type Lathe Collets

COLLET
Order No.ØdØDLØAØB A°MAX ●MAX ⬢MAX ■General No.
C-8001168.011.636.08.03.015°4.533—
C-10016010.016.047.010.05.020°765—
C-14020014.020.047.014.04.020°1087—
C-15022015.022.047.015.05.020°10.597121E / F15 76-358
C-15020015.020.045.515.02.515°1087—
C-200260T20.026.067.019.03.016°161311—
C-22032022.032.066.025.07.015°171512F22-727
C-24028024.028.062.020.07.015°171512—
C-300420B30.042.080.032.012.016°252218S25-HS
C-32040032.040.065.034.06.015°2622180166 / F32 1023
C-369847036.9847.092.040.010.016°322722TF37SP
C-39046039.046.080.0——15°3227221208E / EF39
C-28038028.038.070.028.07.015°231916148E / F28 76-93
C-300849030.0849.0107.538.09.015°322722164E / F38 76-72
C-38149038.149.0108.038.09.015°322722164ES

More Models – Guide Bushes

Unit: mm

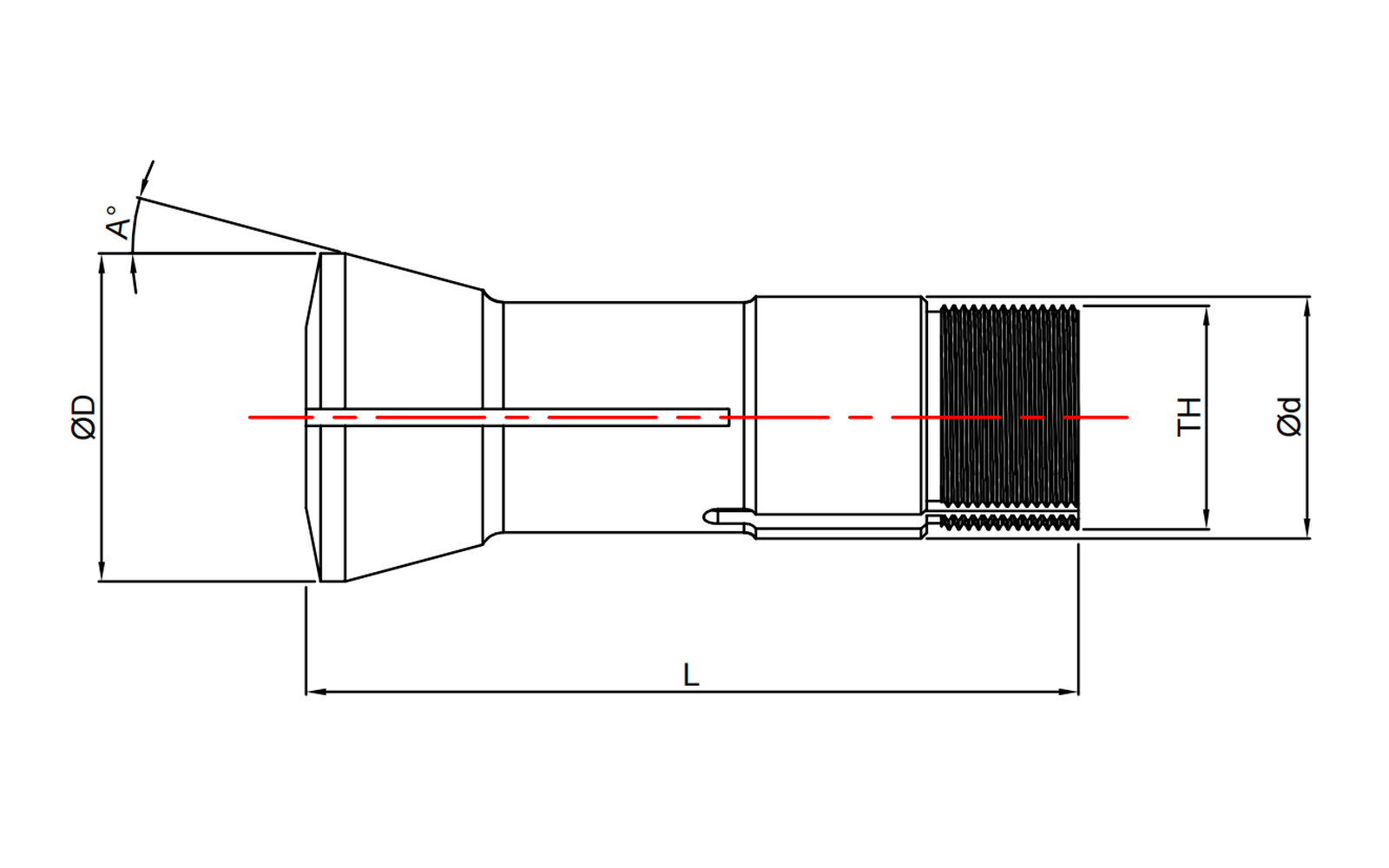

Guide bushing dimensional reference drawing for additional Swiss-type lathe models

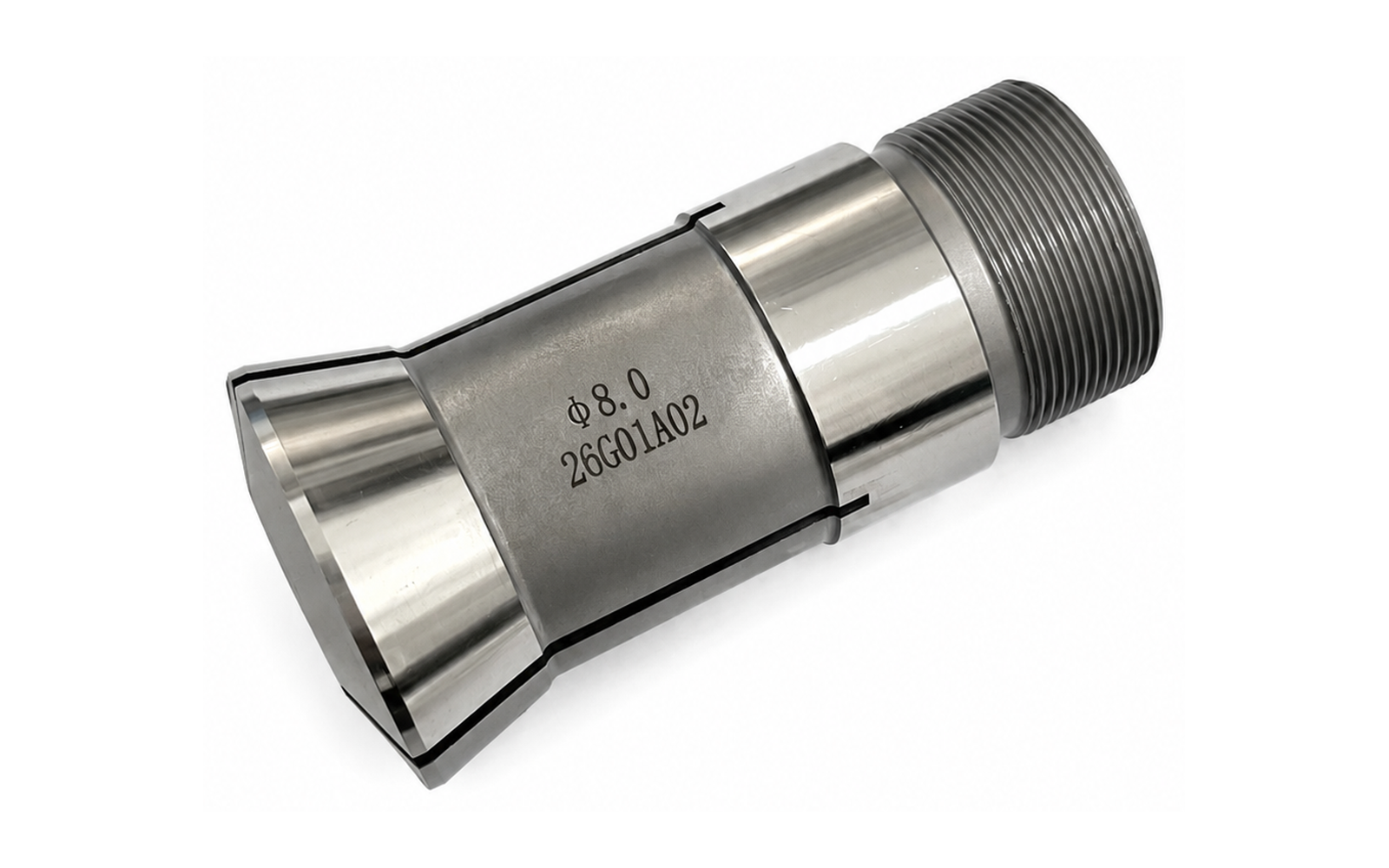

Guide bushing for additional Swiss-type CNC lathe models
MAX bore capacity: Round Hexagon Square

Additional Swiss-Type Lathe Guide Bushes

GUIDE BUSH
Order No.ØdØDLTHA° MAX ●MAX ⬢MAX ■General No.
R-090125T9.012.538.5M8*P0.7516°543—
R-110145T11.014.553.0M10*P0.816°754T11-53-M10.080
R-13016013.016.041.5M12*P0.7515°865T13-41.5
R-15019015.019.054.0M14*P1.016°1087—
R-33038033.038.070.0M30*P1.016°262218TD33 / BA26
R-41046041.046.082.0M38*P1.010°322722—
R-48056048.056.081.0M48*P1.2530°383327B236 / DS42 / T48-81-C30

Internal Thread Pull-Type Collets

Unit: mm

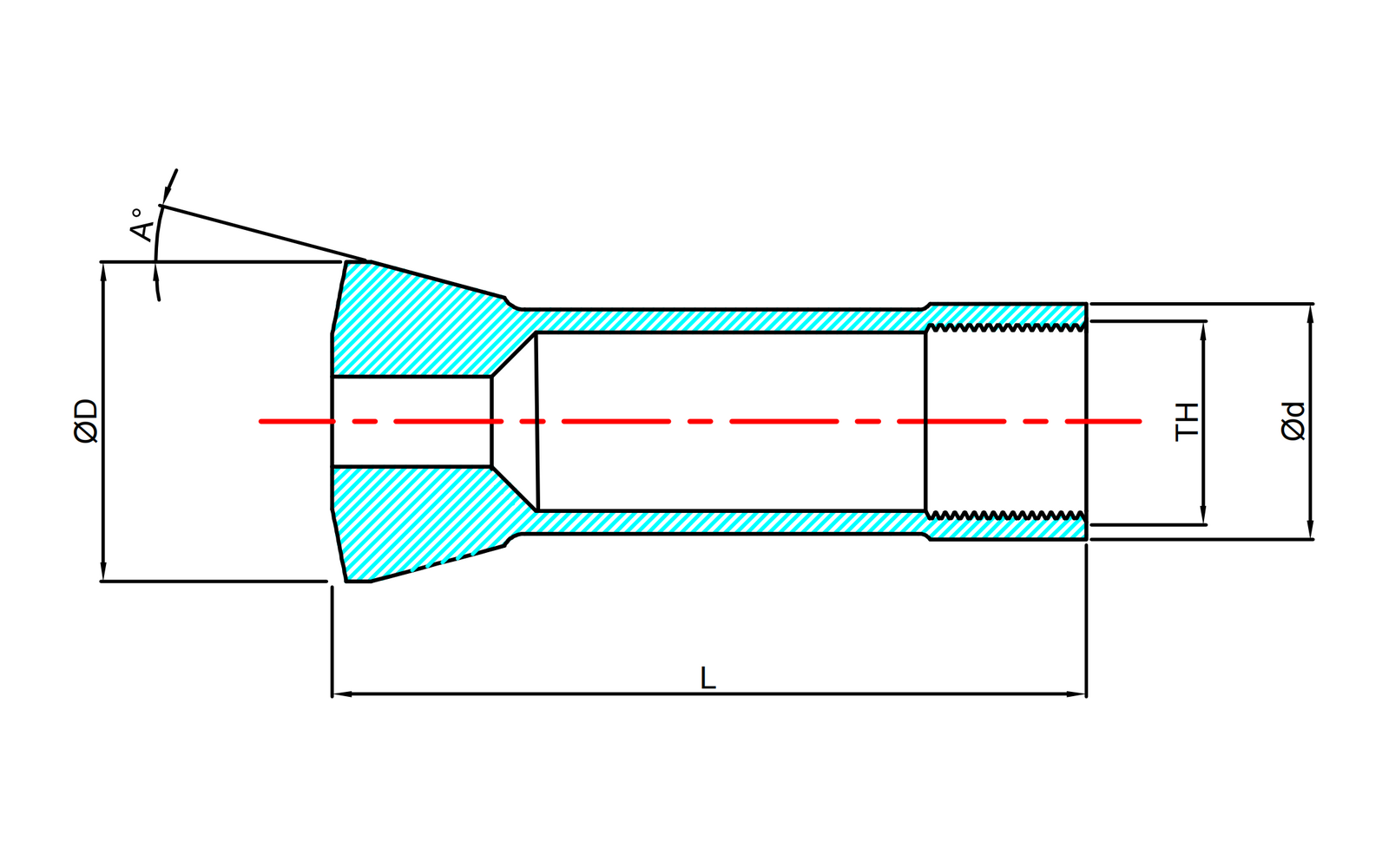

Internal thread pull-type collet dimensional drawing
MAX bore capacity: Round Hexagon Square

P-300380 / P-300380T

PULL-TYPE COLLET
Order No.ØdØDLTHA° MAX ●MAX ⬢MAX ■General No.
P-30038030.038.075.0M25*P1.515°22.51916—
P-300380T30.038.075.0M26*P1.015°22.51916—

5C Lathe Collet

Dimensions: mm · Threads: inch/TPI

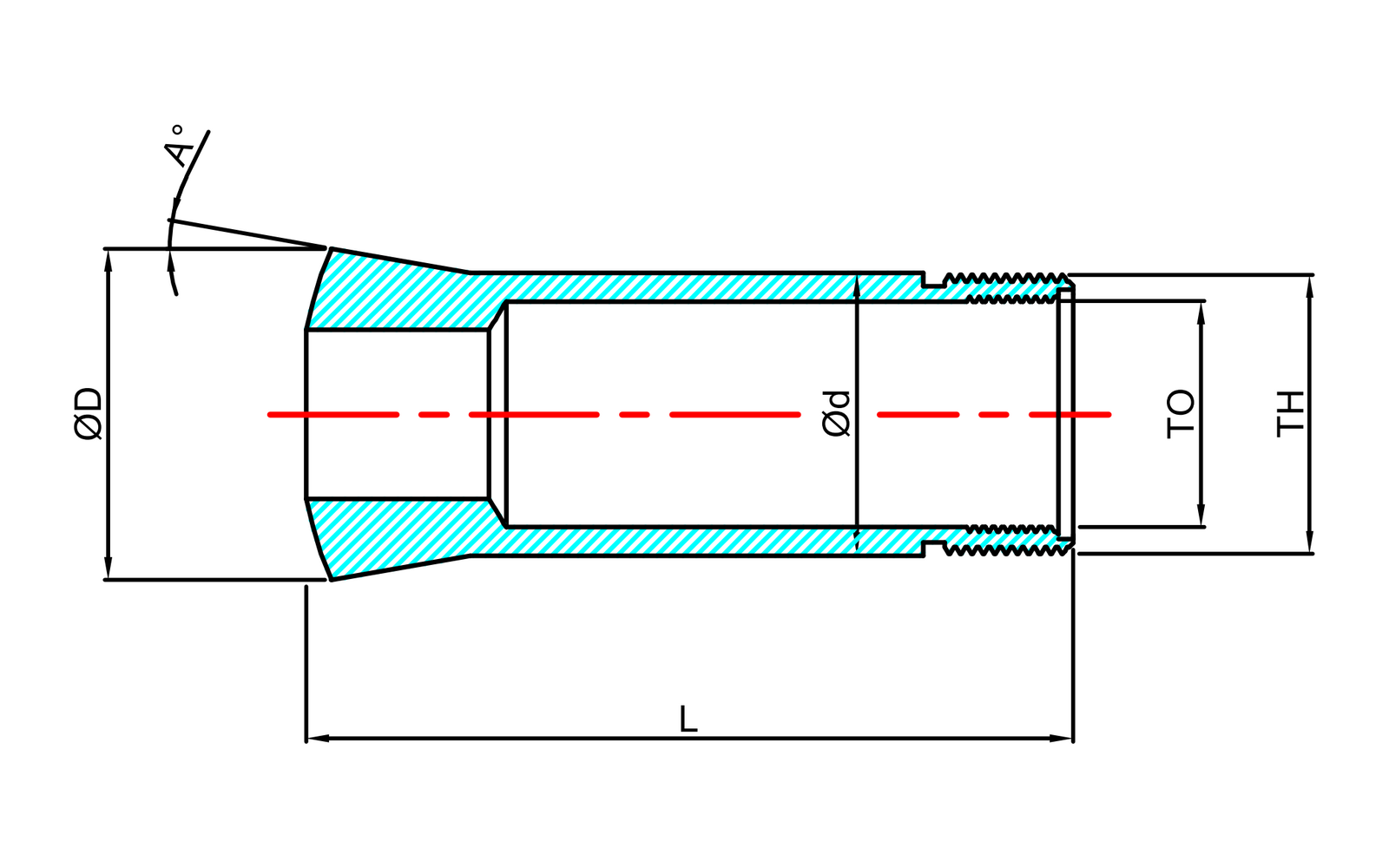

5C lathe collet dimensional drawing
MAX bore capacity: Round Hexagon Square

P-3175375

5C COLLET
Order No.ØdØDLA°TOTH MAX ●MAX ⬢MAX ■General No.
P-3175375 31.75 37.5 86.0 10° 1.041″*24TPI 1.238″*20TPI 25.4 22 19 5C / 385E

16C Lathe Collet

Unit: mm

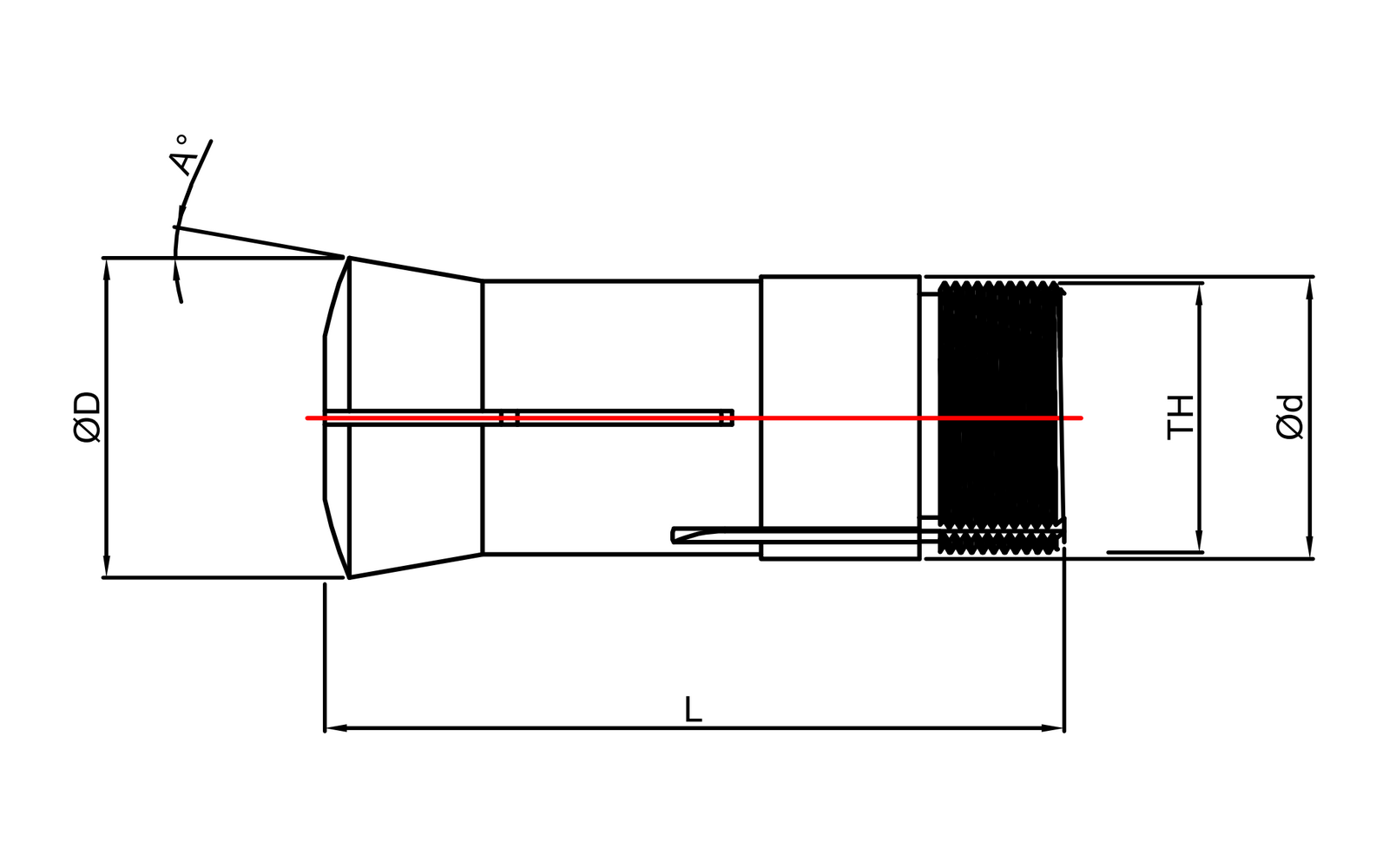

16C lathe collet dimensional drawing
MAX bore capacity: Round Hexagon Square

P-480574

16C COLLET
Order No.ØdØDLA°TOTH MAX ●MAX ⬢MAX ■General No.
P-480574 48.0 57.4 112.0 10° — M47.5*P1.75 40 35 29 16C
Specifications are provided as dimensional references. Please confirm the machine model, collet or guide bush type, bore shape, bore size and required quantity before ordering. Custom dimensions and carbide-lined options are available upon request.

Available Configurations

Bore shape, material and gripping configuration can be customized according to the machine model and machining requirements.

Bore Shapes
Round Bore Hexagon Bore Square Bore Octagon Bore Step Bore Taper Bore Special Bore
Bore & Grip Options
Smooth Bore Anti-Slip Groove Powerful Grip
Material Options
Steel Carbide-Lined Copper-Lined POM / PVC-Lined

Need Collets or Guide Bushes for Another Machine?

Send us your machine model, drawing or sample. PRONIXT can manufacture collets, guide bushes and pull-type collets according to your machining requirements.

Request a Quote →
