SCHAUBLIN Pull-Type Collets
Precision pull-type collets for SCHAUBLIN compatible CNC lathes. Browse W-Series and B-Series precision collets, dimensional specifications, maximum bore capacities and general reference numbers below.

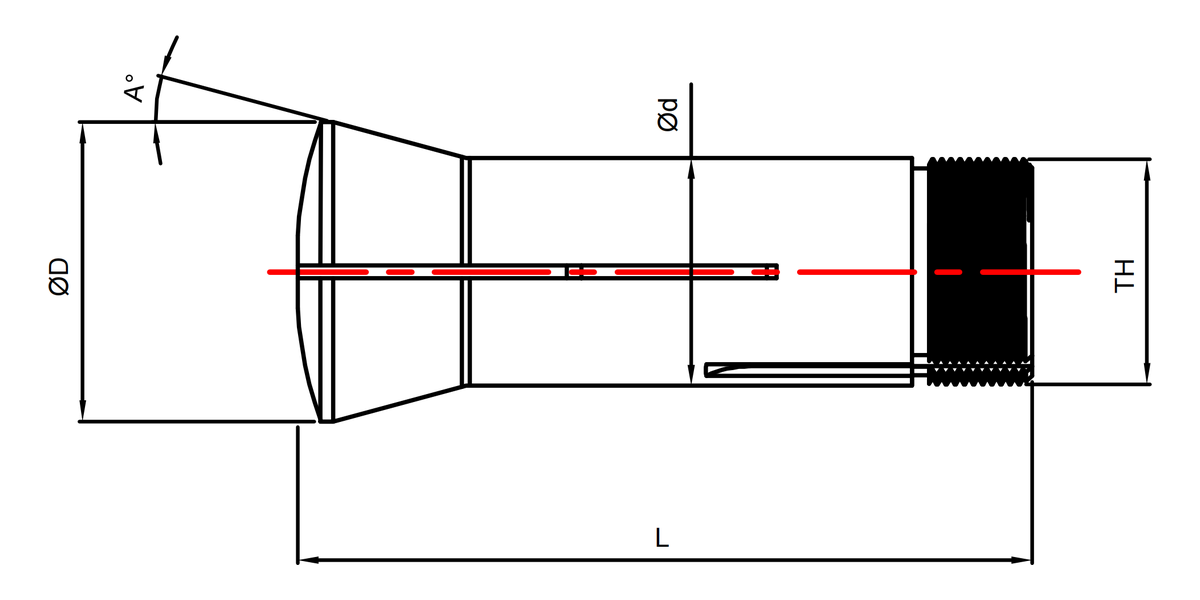

W-Series Precision Collets
Unit: mm
MAX bore capacity:
Round
Hexagon
Square
W12 / W15 / W20 / W25
PULL-TYPE COLLETCompatible pull-type collets: SCHAUBLIN W12 · W15 · W20 · W25 Precision Collets
| Order No. | Ød | ØD | L | TH | A° | MAX ● | MAX ⬢ | MAX ■ | General No. |
|---|---|---|---|---|---|---|---|---|---|
| W-120160 | 12.0 | 16.0 | 46.0 | Ø11.75×1.25 (45°/5°) | 15° | 8 | 7 | 5.5 | W12 |
| W-150202 | 15.0 | 20.2 | 58.3 | Ø14.75×1.25 (45°/5°) | 15° | 10.7 | 9 | 7 | W15 |
| W-200263 | 20.0 | 26.3 | 73.0 | Ø19.7×1.666 (45°/5°) | 15° | 14.5 | 12.5 | 10 | W20 |
| W-250337 | 25.0 | 33.7 | 97.6 | Ø24.7×1.693 (45°/5°) | 15° | 19.05 | 16.5 | 13.5 | W25 |

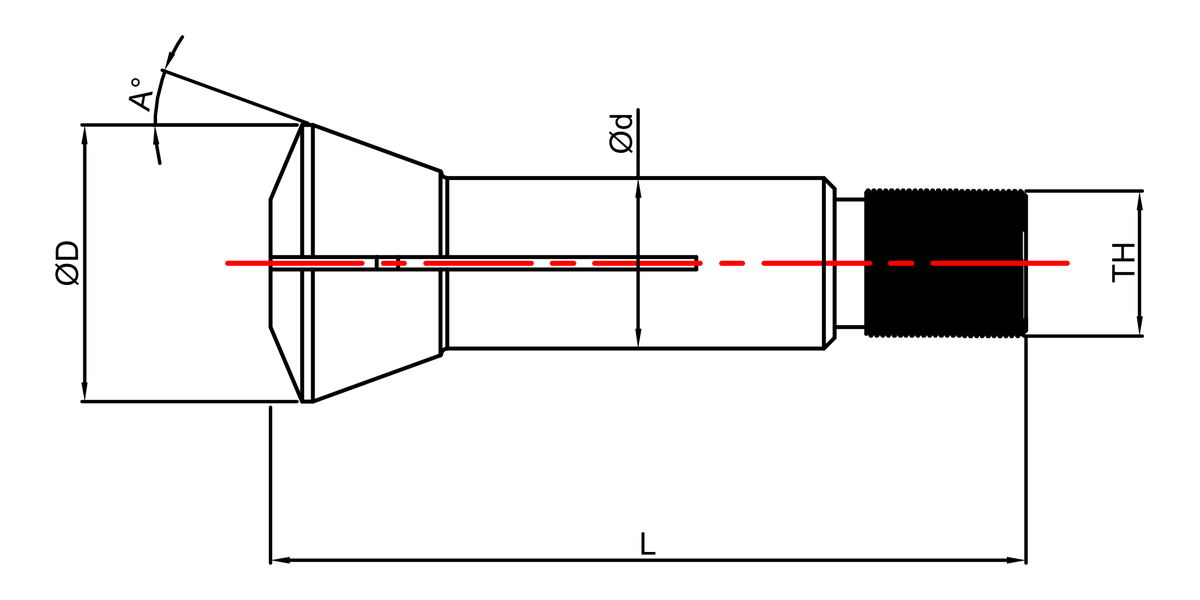

B-Series Precision Collets
Unit: mm
MAX bore capacity:
Round
Hexagon
Square
B8
PULL-TYPE COLLETCompatible pull-type collet: SCHAUBLIN B8 Precision Collet
| Order No. | Ød | ØD | L | TH | A° | MAX ● | MAX ⬢ | MAX ■ | General No. |
|---|---|---|---|---|---|---|---|---|---|
| B-080130 | 8.0 | 13.0 | 35.5 | Ø6.82×0.625 (55°) | 20° | 4 | 3.5 | 2.5 | B8 |
Specifications are provided as dimensional references.
Please confirm the SCHAUBLIN machine model, collet series,
thread specification, bore shape, bore size and required quantity
before ordering. Custom dimensions and carbide-lined options
are available upon request.
Need a Different SCHAUBLIN Collet?
Send us your SCHAUBLIN machine model, collet series, bore size and required quantity. Drawings or samples are also welcome for customized production.
